VEHICLE COMMUNICATION INTERFACE
Robust, versatile, and customisable communication interface for advanced diagnostics in vehicles and machinery.
Cojali DATA Link is an electronic diagnostics device designed for manufacturers who require flexible and adaptable solutions for their systems and processes. Its modular architecture allows it to be implemented in both production and after-sales environments.

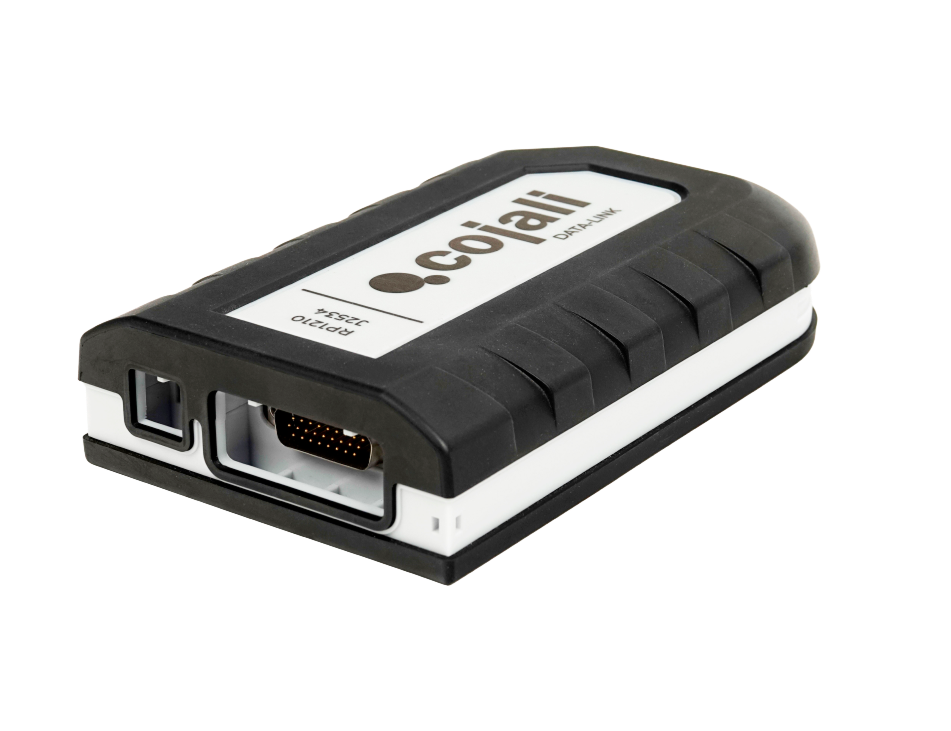

Cojali Data Link
It is a configurable diagnostics and maintenance interface that allows communication with the vehicle's electronic systems using multiple protocols used in the industry.
Compact and lightweight design for comfortable use in the workshop and in the field, adapting to any type of vehicle and communication protocol in the industry.
It is compatible with different types of vehicles and applications, including trucks, buses, agricultural equipment, construction and material handling equipment or vessels.
Main features
- Compatible with RP1210, SAE J2534 and ISO 22900
- Multi-vehicle and multi-voltage support: J1939, J1708, OBD-II, CAN, K-Line, among others
- Dual connectivity: ruggedised USB and integrated Bluetooth 4.1
- Rugged design: Shock-absorbing housing
- Protection against dust and splash
- Four CAN channels: High and Low Speed, Single Wire, CAN Low Speed
- SUBD-26P connector: With multi-vehicle adapters
- Full customisation: Aesthetic and functional.
- Certified device: CE, UKCA, FCC/IC, RoHS, REACH, WEEE.
Competitive advantages
Cojali DATA Link offers manufacturers a robust, scalable, and adaptable solution for any technical environment. It allows the centralisation of diagnostics, maintenance and programming functions, reinforcing brand identity by means of a tool that is reliable and aligned with their operational needs. Its versatility reduces technical complexity, operating costs and improves control over the entire after-sales network.
Technical information
ISO 9141-2
SAE J1708
CAN Low Speed
SAE J1850 VPW
CAN ISO 11898, ISO 15765-4 (OBD)
RP1210
SAE J1850 PWM
CAN Single Wire
PASS THRU
